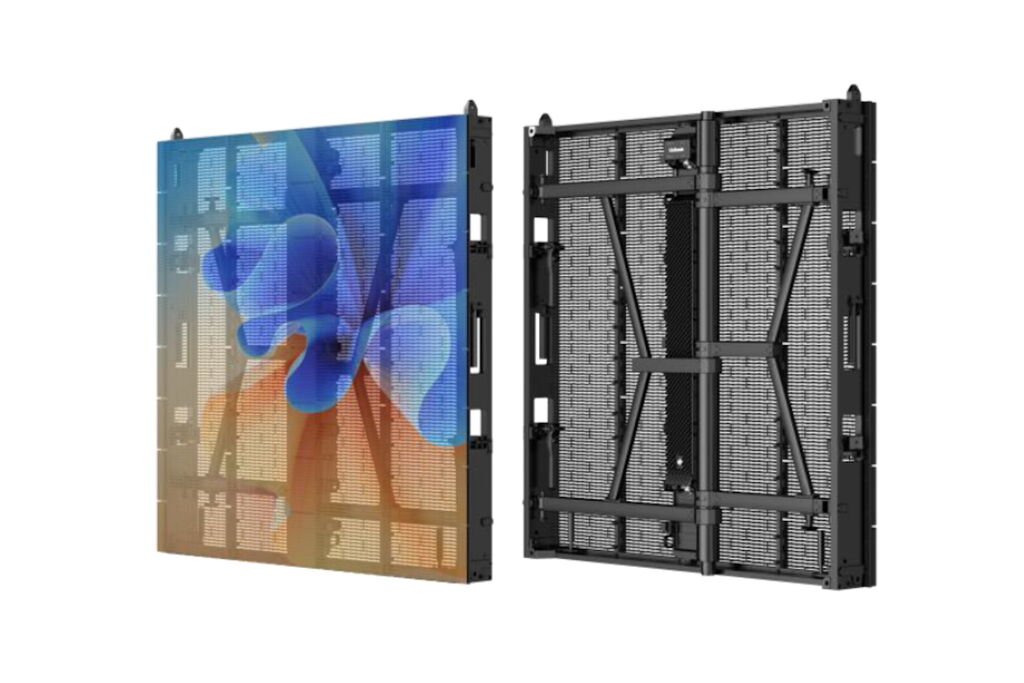

Upad IV ME
Die Upad IV ME bietet bei hoher Transparenz klare Bilder und praktische Modularität für innovative Display-Lösungen.
Pixel Pitch:
7,8 mm





Spezifikationen
Upad IV ME07
7.8 mmPixelpitch
1000 x 1000 x 103 mmDimensionen
5.000 cd/m²Brightness
1:1Aspect ratio
Transparency 50%Contrast
3-in-1 Black SMDLED Type
7.680 HzRefresh rate
RückseitigService access
50/60 HzVideo frame rate
IP65Protection class
128 x 128 pxResolution
160 °viewingAngleHorizontal
160 °viewingAngleVertical
18.7 kg/ModulWeight
Upad IV ME07
Upad IV ME07
1000×1000 LED Display Einheit
25.03.2025
V2.0
7.8 mm
3-in-1 Black SMD
1Rot,1Grün,1Blau
5.000 cd/m²
128 x 128 px
16,384 pixel/m²
18.7 kg/Modul
1000 x 1000 x 103 mm
B500mm×H125mm
-
1:1
1 m²
>7.8m
Druckguss-Aluminium
Aussenbereiche
IP65
-20°C~+50°C/10~90%RH
-20°C~+55°C/10~60%RH
Rückseitig
-15° (konvex) ~ +15° (konkav)
steglos
160 °
160 °
Einstellbar 2000-9300K
4.4 Billionen
Manual/Automatisch
Transparency 50%
530W/Modul
175W/Modul
Konstantstrom LED Treiber
50/60 Hz
7.680 Hz
100~240VAC
50~60 Hz
DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.
Helligkeits- und Farbkalibrierung
Passivkühlung/Lüfterlos
>100,000 Stunden
R:620~630nm / G:520~535nm / B:465~475nm
stehend / hängend
optional
Netzwerkkabel (<100m); multi-mode LWL (<300m); single mode LWL (<15km)

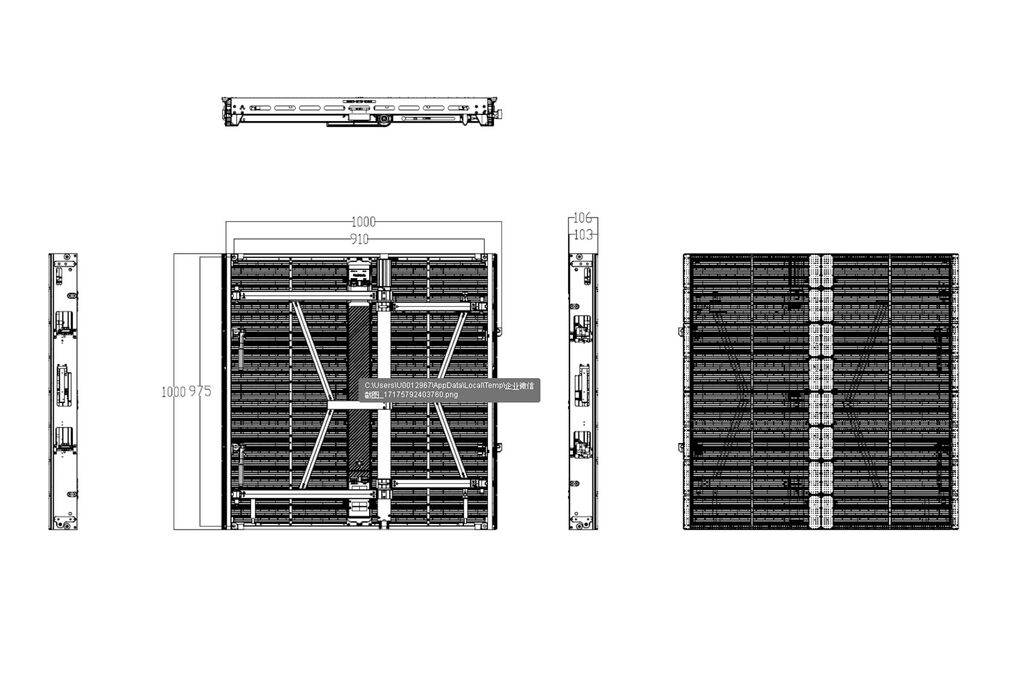

files/content/products/Upad IV ME/Upad IV ME Drawing.jpg
