Upanel II PRO

Stegloser Aufbau für LED-Wände jeglicher Größe mit den höchsten Sicherheitsstandards

Intelligenter MDC-Modus (optional)

Ob Kontroll- oder Konferenzraum, Digital-Signage oder TV-Studio: Die MDC-Technologie ermöglicht ein müheloses und schnelles Umschalten für verschiedene Anwendungsbereiche.

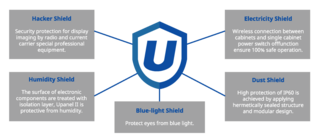

U-Shield-Schutz

Der 5-fach-Schutz macht die Module ideal für militärische und sicherheitsrelevante Anwendungsbereich.

Kabellose Verbindung

Die drahtlose Verbindung zwischen den Einheiten verringert die Ausfallrate und verlängert die Lebensdauer des Bildschirms.

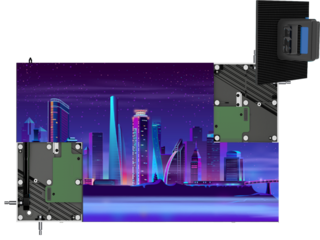

Front-Wartung

Module, Netzteile und interne Kabel können von vorne ausgetauscht werden. Die Front-Wartung spart Zeit und Wartungskosten.

U-Shield Protection: IP60

Durch die hermetische abgedichtete Modulstruktur und das neue modulare Design erreichen die Upanel II-Module eine hochwirksame Wärmeableitung und einen hohen Staub- und Feuchtigkeitsschutz nach Schutzklasse IP60.

Spezifikationen

Upanel II 0.9 Pro

0.953 mmPixelpitch

609.92 x 343.08 x 68 mmDimensionen

600 cd/m²Brightness

16:9Aspect ratio

5000:1Contrast

3-in-1 SMD Common CathodeLED Type

3.840 HzRefresh rate

FrontseitigService access

50/60 HzVideo frame rate

IP60Protection class

640 x 360 pxResolution

160 °viewingAngleHorizontal

160 °viewingAngleVertical

7 kgWeight

Upanel II 0.9 Pro

Upanel II 0.9 Pro

16:9 LED Display Einheit

27.10.2023

V2.0

0.953 mm

3-in-1 SMD Common Cathode

1Rot,1Grün,1Blau

600 cd/m²

640 x 360 px

1,101,068 pixel/m²

7 kg

609.92 x 343.08 x 68 mm

152.48mm×171.54mm

27.5’’(699.79mm)

16:9

0.209 m²

>0.9m

Druckguss - Aluminium

Innenbereiche

IP60

-10°C~+45°C/ 10~80% RH

-20°C~+55°C/ 10~85% RH

Frontseitig

auf Anfrage

steglos

160 °

160 °

einstellbar (2000K bis 9500K)

281 Billionen

Manuell/Automatisch

5000:1

65W

21W

Konstantstrom LED Treiber

50/60 Hz

3.840 Hz

100~240VAC

50~60 Hz

DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.

Helligkeits- und Farbkalibrierung

Passivkühlung/Lüfterlos

>100.000 Stunden

R:620~630nm / G:520 ~ 535nm / B:465 ~ 475nm

stehend

optional

Netzwerkkabel (100m); multi-mode LWL (300m); single mode LWL (15km)

files/content/products/Upanel II/Drawing.jpg

Upanel II 1.2 Pro

1.27 mmPixelpitch

609.92 x 343.08 x 68 mmDimensionen

600 cd/m²Brightness

16:9Aspect ratio

5000:1Contrast

3-in-1 SMD Common CathodeLED Type

3.840 HzRefresh rate

FrontseitigService access

50/60 HzVideo frame rate

IP60Protection class

480 x 270 pxResolution

160 °viewingAngleHorizontal

160 °viewingAngleVertical

7 kgWeight

Upanel II 1.2 Pro

Upanel II 1.2 Pro

16:9 LED Display Einheit

27.10.2023

V2.0

1.27 mm

3-in-1 SMD Common Cathode

1Rot,1Grün,1Blau

600 cd/m²

480 x 270 px

620,001 pixel/m²

7 kg

609.92 x 343.08 x 68 mm

152.48mm×171.54mm

27.5’’(699.79mm)

16:9

0.209 m²

>1.2m

Druckguss - Aluminium

Innenbereiche

IP60

-10°C ~+45°C/10~80%RH

-20°C~+55°C/10~85%RH

Frontseitig

0°~+5° (konkav)

steglos

160 °

160 °

einstellbar (2000K bis 9500K)

281 Billionen

Manuell/Automatisch

5000:1

70W

23W

Konstantstrom LED Treiber

50/60 Hz

3.840 Hz

100~240VAC

50~60 Hz

DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.

Helligkeits- und Farbkalibrierung

Passivkühlung/Lüfterlos

>100.000 Stunden

R:620~630nm / G:520 ~ 535nm / B:465 ~ 475nm

stehend

optional

Netzwerkkabel (100m); multi-mode LWL (300m); single mode LWL (15km)

files/content/products/Upanel II/Drawing.jpg

Upanel II 1.5 Pro

1.58 mmPixelpitch

609.92 x 343.08 x 68 mmDimensionen

600 cd/m²Brightness

16:9Aspect ratio

5000:1Contrast

3-in1 SMD Common CathodeLED Type

3.840 HzRefresh rate

FrontseitigService access

50/60 HzVideo frame rate

IP60Protection class

384 x 216pxResolution

160 °viewingAngleHorizontal

160 °viewingAngleVertical

7 kgWeight

Upanel II 1.5 Pro

Upanel II 1.5 Pro

16:9 LED Display Einheit

27.10.2023

V2.0

1.58 mm

3-in1 SMD Common Cathode

1Rot,1Grün,1Blau

600 cd/m²

384 x 216px

396,550 pixel/m²

7 kg

609.92 x 343.08 x 68 mm

152.48mm×171.54mm

27.5’’(699.79mm)

16:9

0.209 m²

>1.5m

Druckguss - Aluminium

Innenbereiche

IP60

-10°C ~+45°C/10~80%RH

-20°C~+55°C/10~85%RH

Frontseitig

0°~+7° (konkav)

steglos

160 °

160 °

einstellbar (2000K bis 9500K)

281 Billionen

Manuell/Automatisch

5000:1

70W

23W

Konstantstrom LED Treiber

50/60 Hz

3.840 Hz

100~240VAC

50~60 Hz

DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.

Helligkeits- und Farbkalibrierung

Passivkühlung/Lüfterlos

>100.000 Stunden

R:620~630nm / G:520 ~ 535nm / B:465 ~ 475nm

stehend

optional

Netzwerkkabel (100m); multi-mode LWL (300m); single mode LWL (15km)

files/content/products/Upanel II/Drawing.jpg

Upanel II 1.9 Pro

1.906 mmPixelpitch

609.92 x 343.08 x 68 mmDimensionen

600 cd/m²Brightness

16:9Aspect ratio

5000:1Contrast

3-in1 SMD Common CathodeLED Type

3.840 HzRefresh rate

FrontseitigService access

50/60 HzVideo frame rate

IP60Protection class

320 x 180pxResolution

160 °viewingAngleHorizontal

160 °viewingAngleVertical

7 kgWeight

Upanel II 1.9 Pro

Upanel II 1.9 Pro

16:9 LED Display Einheit

27.10.2023

V2.0

1.906 mm

3-in1 SMD Common Cathode

1Rot,1Grün,1Blau

600 cd/m²

320 x 180px

275,267 pixel/m²

7 kg

609.92 x 343.08 x 68 mm

152.48mm×171.54mm

27.5’’(699.79mm)

16:9

0.209 m²

>1.9m

Druckguss - Aluminium

Innenbereiche

IP60

-10°C ~+45°C/10~80%RH

-20°C~+55°C/10~85%RH

Frontseitig

0°~+7° (konkav)

steglos

160 °

160 °

einstellbar (2000K bis 9500K)

281 Billionen

Manuell/Automatisch

5000:1

70W

23W

Konstantstrom LED Treiber

50/60 Hz

3.840 Hz

100~240VAC

50~60 Hz

DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.

Helligkeits- und Farbkalibrierung

Passivkühlung/Lüfterlos

>100.000 Stunden

R:620~630nm / G:520 ~ 535nm / B:465 ~ 475nm

stehend

optional

Netzwerkkabel (100m); multi-mode LWL (300m); single mode LWL (15km)

files/content/products/Upanel II/Drawing.jpg

Upanel II 2.5 Pro

2.54 mmPixelpitch

609.92 x 343.08 x 68 mmDimensionen

600 cd/m²Brightness

16:9Aspect ratio

5000:1Contrast

3-in1 SMD Common CathodeLED Type

3.840 HzRefresh rate

FrontseitigService access

50/60 HzVideo frame rate

IP60Protection class

240 x 135pxResolution

160 °viewingAngleHorizontal

160 °viewingAngleVertical

7 kgWeight

Upanel II 2.5 Pro

Upanel II 2.5 Pro

16:9 LED Display Einheit

27.10.2023

V2.0

2.54 mm

3-in1 SMD Common Cathode

1Rot,1Grün,1Blau

600 cd/m²

240 x 135px

155,000 pixel/m²

7 kg

609.92 x 343.08 x 68 mm

152.48mm×343.08mm

27.5’’(699.79mm)

16:9

0.209m²

>2.5 m

Druckguss - Aluminium

Innenbereiche

IP60

-10°C ~+45°C/10~80%RH

-20°C~+55°C/10~85%RH

Frontseitig

0°~+7° (konkav)

steglos

160 °

160 °

einstellbar (2000K bis 9500K)

281 Billionen

Manuell/Automatisch

5000:1

60W

20W

Konstantstrom LED Treiber

50/60 Hz

3.840 Hz

100~240VAC

50~60 Hz

DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.

Helligkeits- und Farbkalibrierung

Passivkühlung/Lüfterlos

>100.000 Stunden

R:620~630nm / G:520 ~ 535nm / B:465 ~ 475nm

stehend

optional

Netzwerkkabel (100m); multi-mode LWL (300m); single mode LWL (15km)

files/content/products/Upanel II/Drawing.jpg
